Ricoh IMC530FB
Ricoh IMC530FB Product Overview
Never has it been so easy to optimise your printing workflows and overall productivity. Customisable features coupled with an intuitive user interface, means you can improve and maintain quality across numerous devices. Print up to 53 pages per minute seamlessly and use the IM C530FB’s large capacity tray to produce up to 3,250 pages without any delays.
Integrations
Get the best from your device with integrations with the leading apps including Office 365, Dropbox and Gmail.
Ricoh IMC530FB Specifications & Downloads
Description
General Specs
Printer
Scanner
Copy
Fax
Description
Use the IM C530FB to boost your digital workflows, using a selection of Cloud-based apps and solutions. The end result: seamless printing processes and zero time-consuming and costly delays.
- Print up to 53 pages seamlessly per minute
- Use the MFP cloud connection to share and access all types of information
- Compact in design, the IM C530FB takes up less space
- Seamlessly print up to 3,250 sheets without delays

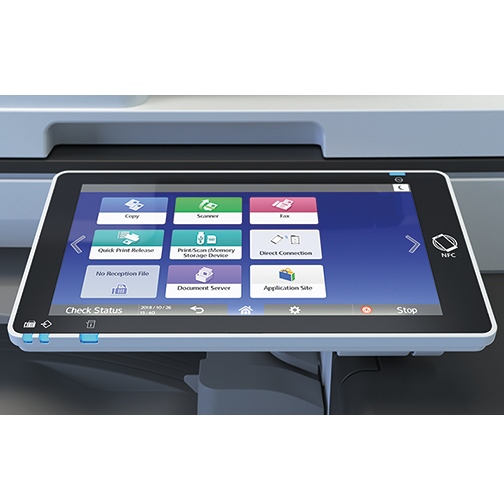

- Use the new 7” touchscreen control panel to customise, manage and add new features
- Achieve consistent operability across multiple devices with the touchscreen user interface
General Specs
| Configuration | Desktop |
| Printing process | Dry –two component electro-photographic printing |
| Development | Non magnetism, single component development |
| Technology | Electro photographic printing system with laser beam |
| Warm-up time | 39 seconds |
| First output speed: B/W | 4 seconds |
| First output speed: full colour | 4.2 seconds |
| Continuous output speed | 53 ppm |
| Memory: standard | 2 GB |
| Memory: maximum | 2 GB |
| Storage – eMMC: | 32GB |
| SPDF capacity | 100 sheets |
| Duty cycle | 150,000 |
| Duplex | Yes |
| Weight | 38 kg |
| Dimensions: W x D x H | 470 x 502.8 x 643.7 mm |
| Power source | 220 – 240 V, 50 – 60 Hz |
| Recommended paper size – Standard paper tray(s): | A4, A5, B5, Legal, Letter, Half Letter, Executive, Foolscap, Monarch, C5, DL Env |
| Recommended paper size – Optional paper tray(s): | A4, A5, B5, Legal, Letter, Half Letter, Executive, Foolscap, C5, Envelopes |
| Recommended paper size – LCT: | A4 |
| Recommended paper size – Bypass tray: | A4, A5, A6, B5, Legal, Letter, Half Letter, Executive, Foolscap, Monarch, C5, C6, DL Env, Custom Size paper |
| Paper input: standard | 550 sheets |
| Paper input: bypass | 150 sheets |
| Paper input: option – Paper bank unit: | 550 sheets |
| Paper input: option – LCT: | 2,000 sheets |
| Paper input: maximum | 3,250 sheets |
| Paper output: standard | 400 sheets |
| Paper weight | 60 – 220 g/m² |
| Paper weight – Optional tray(s): | 60 – 220 g/m² |
| Paper weight – Optional tray (LCT): | 60-176 g/m² |
| Paper weight – Bypass: | 60 – 220 g/m² |
| Paper weight – Duplex: | 60 – 176 g/m² |
| Paper types | Plain paper, Recycled paper, Special paper 1-3, Letterhead, Envelope, Coated paper, Middle thick paper, Thick paper 1, Thick paper 2 |
| Power consumption: max. | Less than 1,650 W |
| Power consumption operation: B/W | 578 W |
| Power consumption operation: Full colour | 633 W |
| Power consumption: ready | 99.8 W |
| Power consumption: sleep | 0.75 W |
| TEC* | 0.73 kWh⁄week |
| Sound – Sound power level: | Standby/energy saving,30 dB, Printing, dB, Copying,Nominal value, dB |
| Sound – Sound pressure level: | Standby/energy saving, dB, Printing, dB |
| Safety regulations – Environmental standard: | BAM, Canada Ecologo® |
| Usage and durability ratings – APV: maximum: | 10,000 prints |
| Usage and durability ratings – Duty: | 120,000 prints |
| Usage and durability ratings – Estimated life: | 5 years or 600,000 output |
| 4x 550-sheet paper tray – Paper size: | A4, A5, B5 |
| 4x 550-sheet paper tray – Paper weight: | 60-220 g/m² |
| 2,000-sheet Large capacity tray – Paper size: | A4, LT |
| 2,000-sheet Large capacity tray – Paper weight: | 60-176 g/m² |
| Starter toner | Black: 7,500 prints, Cyan: 4,500 prints, Magenta: 4,500 prints, Yellow: 4,500 prints |
| Toner (black) | 20,500 prints |
| Toner: cyan/magenta/yellow | 18,000 prints |
| Photo conductor/developer unit – Black: | 60,000 sheets |
| Photo conductor/developer unit – Cyan/magenta/yellow: | 60,000 sheets |
| Fusing unit | 240,000 sheets |
| Waste toner bottle | 30,000 sheets |
Printer
| CPU | ARM CortexA53 – Dual core1.2 GHz |
| Printer language: standard | PCL5c, PCL6, PostScript 3 (emulation), PDF direct (emulation) |
| Print resolution – PCL5c: | 300 dpi, 600 dpi |
| Print resolution – PCL6: | 600 dpi, 1,200 dpi |
| Print resolution – PS3: | 600 dpi, 1,200 dpi |
| Interface – Standard: | Mainframe,Ethernet (1000BASE-T/100BASE-TX/10BASE-T), Mainframe,USB2.0, Mainframe,USB Host 2.0 (3G Dongle only), Mainframe,Fax, Bluetooth 4.2, SD card slot (1Slot/Support SDHC memory card), USB host (Type A:1Port/Support USB flash memory), Optional USB host (TypeA:1Port/Support keyboard), Optional USB host (Type Mini B:1Port/Support NFC IC card R/W), MicroSD card slot for expansion of ROM storage of the operation unit, Wireless LAN (IEEE 802.11 a/b/g/n), NFC Tag (Include :ISO14443 Type A, NFC Forum Type2 Tag Compliant) |
| Interface – Option: | Wireless LAN (IEEE 802.11a/b/g/n) |
| Mobile printing capability | Apple AirPrint, Mopria®, Google Cloud Print, Ricoh Smart Device Connector |
| Windows® environments | Windows® 7, Windows® 8.1, Windows® 10, Windows® Server 2008, Windows® Server 2008R2, Windows® Server 2012R2, Windows® Server 2016 |
| Mac OS environments | Macintosh 8.6 or later (OS X Classic), Macintosh OS X v10.12 or later |
| UNIX environments – UNIX Sun® Solaris | 9 |
| UNIX environments – HP-UX | 11.x, 11i v2, 11i v3 |
| UNIX environments – SCO OpenServer | 5.0.7, 6.0 |
| UNIX environments – RedHat® Linux Enterprise | 4, 5, 6 |
| UNIX environments – IBM® AIX | V6.1, V7.1, V7.2 |
| UNIX environments – Citrix XenApp | 7.15 or Later |
| SAP® environments | SAP® R/3®, SAP® S/4® |
| Network/operating system – PCL5c: | Windows 7 (32/64bit), Windows 8.1 (32/64bit), Windows 10 (32/64bit), Server 2008 (32/64bit), Server 2008R2 (64bit), Server 2012/R2 (64bit), Server 2016, SAP R/3, SAP S/4, Unix Sun Solaris, HP-UX, SCO OpenServer, Red Hat Linux, IBM AIX |
| Network/operating system – PCL6: | Windows 7 (32/64bit), Server 2008 (32/64bit), Server 2008R2 (64bit), Windows 8.1 (32/64bit), Server 2012/R2 (64bit), Windows 10 (32/64bit), Server 2016 |
| Network/operating system – PS3: | Windows 7 (32/64bit), Server 2008 (32/64bit), Server 2008R2 (64bit), Windows 8.1 (32/64bit), Windows 10 (32/64bit), Server 2012/R2 (64bit), Server 2016, Unix Sun Solaris, HP-UX, SCO OpenServer, Red Hat Linux, IBM AIX |
Scanner
| Scanning speed: SPDF | Simplex: BW,46 ipm (A4, 200dpi), BWColour,46 ipm (A4, 200dpi); Duplex: BW,71 ipm (A4, 200dpi), BWColour,52 ipm (A4, 200dpi) |
| Resolution: maximum | 600 dpi |
| Scan modes | E-mail, Folder, USB, SD Card |
Copy
| First copy speed | BW: 6.5 seconds, Colour: 6.6 seconds |
| Multiple copying | Up to 999 copies |
| Resolution | 1,200 x 1,200 dpi |
| Colour mode setting | Default: Black and white mode, Auto Colour Selection (ACS), Full colour, Black and white , Single colour: |
| Reproduction ratio | 400%, 200%, 155%, 141%, 129%, 122%, 121%, 115%, 100%, 93%, 85%, 82%, 78%, 75%, 73%, 71%, 65%, 50%, 25% |
| Maximum original size – Book: | A3, DLT, A4 |
| Maximum original size – ADF: | A3, DLT, A4 |
| Zoom | From 25% to 400% in 1% steps |
| Paper selection | 1st tray, 2nd tray, 3rd tray (with paper bank), 4th tray (with paper bank), Bypass tray, LCT |
Fax
| Circuit | PSTN, PBX |
| Modem speed: maximum | 33.6 Kbps |
| Resolution: standard | 8×3.85 line̸ mm, 200×100 dpi, 8×7.7 line̸ mm, 200×200 dpi |
| Compression method | MH, MR, MMR |
| Scanning speed | 46 spm |
| Page memory size | Standard: 9.7 MB |
| SAF memory size | Standard: 4 MB (approximately 320 pages) |
| SID code (sender ID) | Yes |
| Programming by OMR | No |
| Telephone specifications | Handset/telephone, Monitor speaker, On hook dial, Tone transmission, Pause, Pulse/tone selection, Reception mode selection, Auto answer delay time, Busy tone detection |
